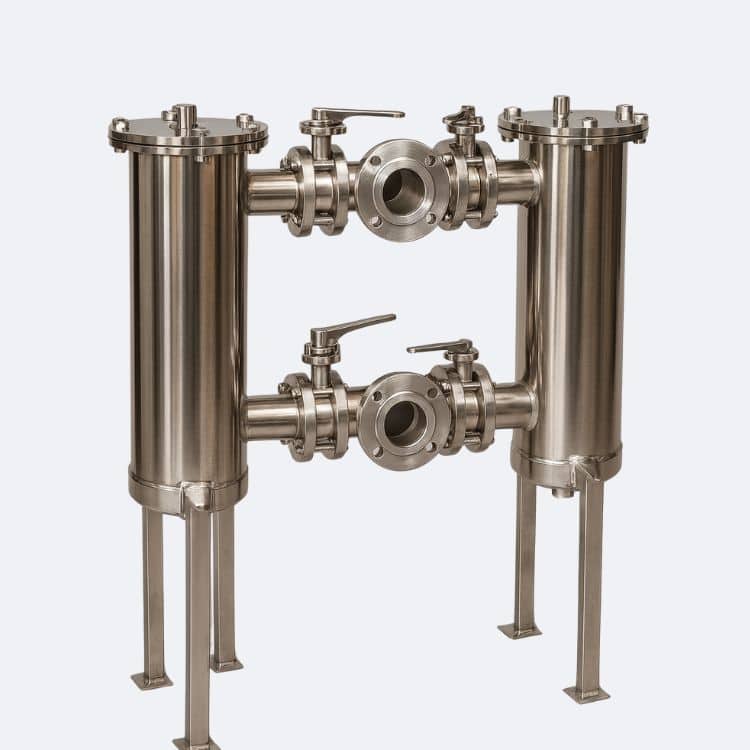

Duplex Filters
Aqua Fluid Technologies manufactures robust Duplex Filters designed for continuous, uninterrupted filtration of process fluids. These filters feature two basket strainers and two 3-way ball valves that allow seamless flow diversion during cleaning. While one strainer is in operation, the clogged screen of the other can be cleaned and reinstalled, ensuring zero downtime. Available in carbon steel, SS304, and SS316 construction, they withstand pressures up to 30 kg/cm² and temperatures up to 300°C. With customizable micron ratings (2µm–500µm) and media options, they provide reliable performance, leak-proof design, and extended filter life across critical industrial applications.
Categories:
Hydraulic Filters-
Continuous flow without system shutdown.
-
Leak-proof, bubble-tight sealing with ball valves.
-
High dirt-holding capacity and easy screen replacement.
-
Available in multiple materials (CS, SS304, SS316).
-
Wide micron rating range (2µm–500µm).
-
Petrochemical & chemical processing plants.
-
Power generation and cooling systems.
-
Oil & gas, refineries, and marine systems.
-
Water treatment and industrial fluid handling.
-
Hydraulic and lubrication circuits requiring uninterrupted filtration.
-
Design: Duplex basket with 3-way ball valves.
-
Filter Media: Glass fibre, stainless steel mesh, paper/cellulose (as per need).
-
Micron Ratings: 2µm–500µm (customizable).
-
MOC: CS, SS304, SS316.
-
Pressure: Up to 30 kg/cm².
-
Temperature: Up to 300°C.
-
Service Life: Depends on fluid quality, load, and maintenance frequency.
