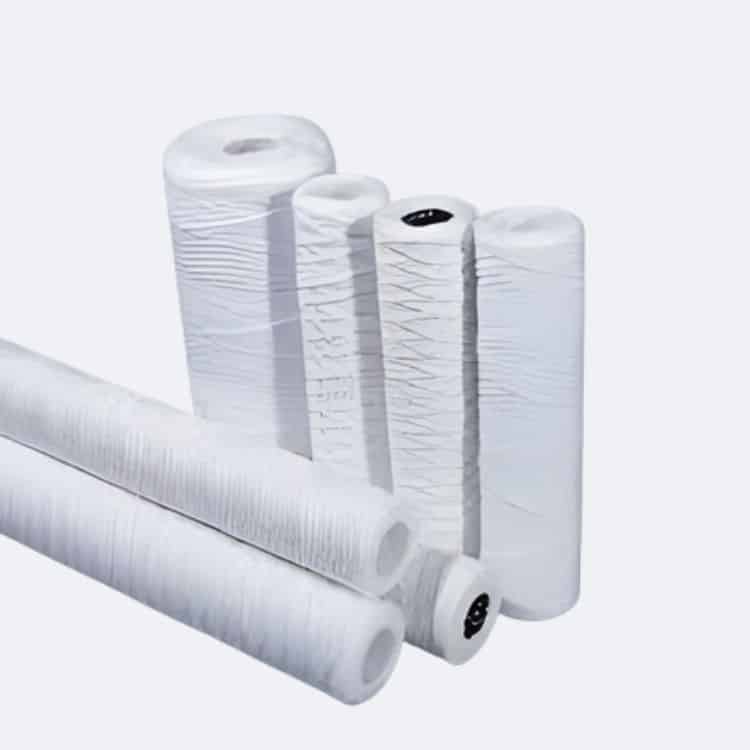

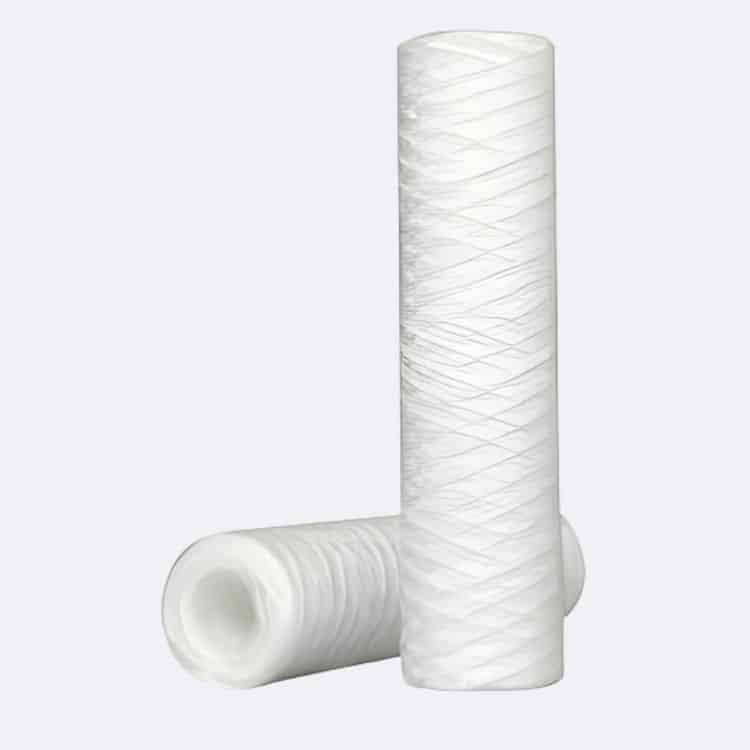

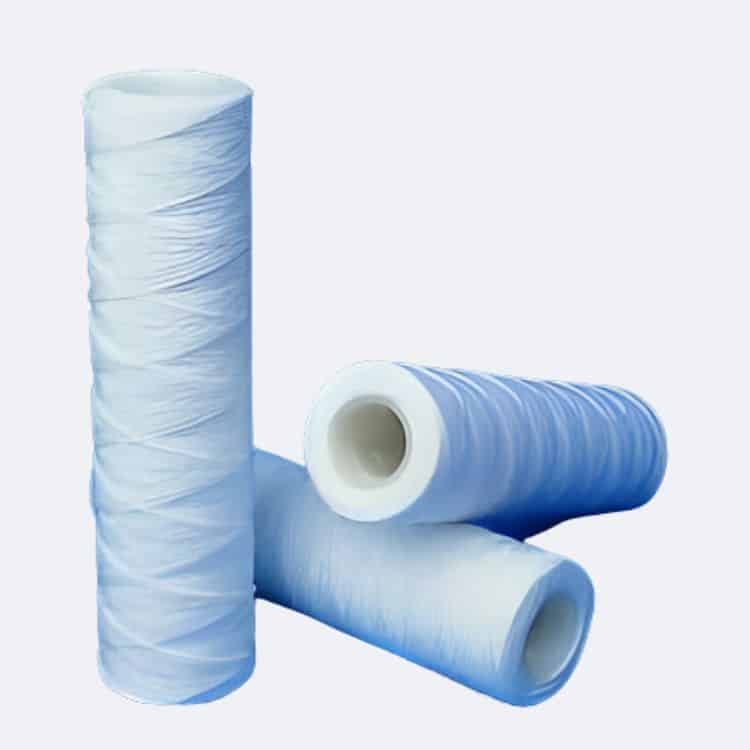

String Wound Cartridges
Aqua Fluid Technologies offers string wound filter cartridges designed with a precision honeycomb structure for efficient removal of suspended solids, rust, and fine particles from low-viscosity fluids. Manufactured using uniform yarn winding, these cartridges provide high dirt-holding capacity, longer life, and reduced downtime. With micron ratings from 0.5µm to 150µm, lengths up to 72”, and yarn options such as cotton, polypropylene, polyester, glass fibre, and nylon, they are ideal for diverse chemical, water, and process applications. Available with stainless steel or polypropylene cores, they withstand temperatures up to 350°C, making them versatile, cost-effective pre-filters for critical systems.
Categories:
Cartridge Filters-
Wide micron rating range (0.5µm–150µm).
-
High dirt-holding capacity for longer service life.
-
Compatible with various chemicals and temperature conditions.
-
Cost-effective pre-filtration solution to protect final filters.
-
Available in multiple lengths (10”–72”) and media combinations.
-
Water treatment and RO pre-filtration.
-
Petrochemical, oil & gas, and refinery processes.
-
Food & beverage, pharmaceuticals, and chemical industries.
-
Power plants and cooling water filtration.
-
Hydraulic and lubrication oil systems.
-
Micron Ratings: 0.5µm–150µm (custom on request).
-
Yarn Materials: Cotton, Polypropylene, Polyester, Nylon, Rayon, Glass Fibre.
-
Core Materials: Stainless Steel (304, 316, 202, etc.) or Polypropylene.
-
Lengths: 10”, 20”, 30”, 36”, 40”, 72” (custom available).
-
Temperature Range: 80°C–350°C.
-
Max Differential Pressure: 2.2 kg/cm².
-
Service Life: Extended, depending on flow and contamination load.
